Perspective camera interface. More...

#include <mitsuba/render/sensor.h>

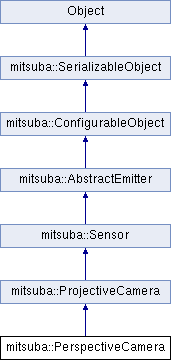

Inheritance diagram for mitsuba::PerspectiveCamera:

Public Member Functions
virtual void	configure ()
	Configure the object (called once after construction and addition of all child ConfigurableObject instances). More...

virtual void	serialize (Stream stream, InstanceManager manager) const
	Serialize this camera to a binary data stream. More...

virtual const Class *	getClass () const
	Retrieve this object's class. More...

Field of view-related
Float	getXFov () const
	Return the horizontal field of view in degrees. More...

void	setXFov (Float xfov)
	Set the horizontal field of view in degrees. More...

Float	getYFov () const
	Return the vertical field of view in degrees. More...

void	setYFov (Float yfov)
	Set the vertical field of view in degrees. More...

Float	getDiagonalFov () const
	Return the diagonal field of view in degrees. More...

void	setDiagonalFov (Float dfov)
	Set the diagonal field of view in degrees. More...

Public Member Functions inherited from mitsuba::ProjectiveCamera
const Transform	getViewTransform (Float t) const
	Return the world-to-view (aka "view") transformation at time `t`. More...

const Transform	getWorldTransform (Float t) const
	Return the view-to-world transformation at time `t`. More...

void	setWorldTransform (const Transform &trafo)
	Overwrite the view-to-world transformation with a static (i.e. non-animated) transformation. More...

void	setWorldTransform (AnimatedTransform *trafo)
	Overwrite the view-to-world transformation with an animated transformation. More...

virtual Transform	getProjectionTransform (const Point2 &apertureSample, const Point2 &aaSample) const =0
	Return a projection matrix suitable for rendering the scene using OpenGL. More...

Float	getNearClip () const
	Return the near clip plane distance. More...

void	setNearClip (Float nearClip)
	Set the near clip plane distance. More...

Float	getFarClip () const
	Return the far clip plane distance. More...

void	setFarClip (Float farClip)
	Set the far clip plane distance. More...

Float	getFocusDistance () const
	Return the distance to the focal plane. More...

void	setFocusDistance (Float focusDistance)
	Set the distance to the focal plane. More...

Public Member Functions inherited from mitsuba::Sensor
virtual Spectrum	sampleRay (Ray &ray, const Point2 &samplePosition, const Point2 &apertureSample, Float timeSample) const =0
	Importance sample a ray according to the sensor response. More...

virtual Spectrum	sampleRayDifferential (RayDifferential &ray, const Point2 &samplePosition, const Point2 &apertureSample, Float timeSample) const
	Importance sample a ray differential according to the sensor response. More...

Float	sampleTime (Float sample) const
	Importance sample the temporal part of the sensor response function. More...

virtual Spectrum	eval (const Intersection &its, const Vector &d, Point2 &samplePos) const
	Return the emitted importance for the given surface intersection. More...

virtual bool	getSamplePosition (const PositionSamplingRecord &pRec, const DirectionSamplingRecord &dRec, Point2 &position) const
	Return the sample position associated with a given position and direction sampling record. More...

Float	pdfTime (const Ray &ray, EMeasure measure) const
	Evaluate the temporal component of the sampling density implemented by the sampleRay() method. More...

Float	getShutterOpen () const
	Return the time value of the shutter opening event. More...

void	setShutterOpen (Float time)
	Set the time value of the shutter opening event. More...

Float	getShutterOpenTime () const
	Return the length, for which the shutter remains open. More...

void	setShutterOpenTime (Float time)
	Set the length, for which the shutter remains open. More...

bool	needsTimeSample () const
	Does the method sampleRay() require a uniformly distributed sample for the time-dependent component? More...

bool	needsApertureSample () const
	Does the method sampleRay() require a uniformly distributed sample for the aperture component? More...

Film *	getFilm ()
	Return the Film instance associated with this sensor. More...

const Film *	getFilm () const
	Return the Film instance associated with this sensor (const) More...

Float	getAspect () const
	Return the aspect ratio of the sensor and its underlying film. More...

Sampler *	getSampler ()
	Return the sensor's sample generator. More...

const Sampler *	getSampler () const
	Return the sensor's sampler (const version). More...

virtual void	addChild (const std::string &name, ConfigurableObject *child)
	Add a child ConfigurableObject. More...

void	addChild (ConfigurableObject *child)
	Add an unnamed child. More...

Public Member Functions inherited from mitsuba::AbstractEmitter
virtual Spectrum	samplePosition (PositionSamplingRecord &pRec, const Point2 &sample, const Point2 *extra=NULL) const
	Importance sample the spatial component of the emission profile. More...

virtual Spectrum	sampleDirection (DirectionSamplingRecord &dRec, PositionSamplingRecord &pRec, const Point2 &sample, const Point2 *extra=NULL) const
	Conditioned on the spatial component, importance sample the directional part of the emission profile. More...

virtual Spectrum	sampleDirect (DirectSamplingRecord &dRec, const Point2 &sample) const
	Direct sampling: given a reference point in the scene, sample an emitter position that contributes towards it. More...

virtual Spectrum	evalPosition (const PositionSamplingRecord &pRec) const
	Evaluate the spatial component of the emission profile. More...

virtual Spectrum	evalDirection (const DirectionSamplingRecord &dRec, const PositionSamplingRecord &pRec) const
	Evaluate the directional component of the emission profile. More...

virtual Float	pdfPosition (const PositionSamplingRecord &pRec) const
	Evaluate the spatial component of the sampling density implemented by the samplePosition() method. More...

virtual Float	pdfDirection (const DirectionSamplingRecord &dRec, const PositionSamplingRecord &pRec) const
	Evaluate the directional component of the sampling density implemented by the sampleDirection() method. More...

virtual Float	pdfDirect (const DirectSamplingRecord &dRec) const
	Evaluate the probability density of the direct sampling method implemented by the sampleDirect() method. More...

uint32_t	getType () const
	Return a listing of classification flags combined using binary OR. More...

const AnimatedTransform *	getWorldTransform () const
	Return the local space to world space transformation. More...

void	setWorldTransform (AnimatedTransform *trafo)
	Set the local space to world space transformation. More...

bool	needsPositionSample () const
	Does the method samplePosition() require a uniformly distributed sample for the spatial component? More...

bool	needsDirectionSample () const
	Does the method sampleDirection() require a uniformly distributed sample for the direction component? More...

bool	isOnSurface () const
	Does the emitter lie on some kind of surface? More...

bool	isDegenerate () const
	Does the sensor have a degenerate directional or spatial distribution? More...

bool	needsDirectSample () const
	Does the method sampleDirect() require a uniformly distributed sample? More...

EMeasure	getDirectMeasure () const
	Return the measure associated with the sampleDirect() operation. More...

Medium *	getMedium ()
	Return a pointer to the medium that surrounds the emitter. More...

const Medium *	getMedium () const
	Return a pointer to the medium that surrounds the emitter (const version) More...

Shape *	getShape ()
	Return the shape, to which the emitter is currently attached. More...

const Shape *	getShape () const
	Return the shape, to which the emitter is currently attached (const version) More...

virtual ref< Shape >	createShape (const Scene *scene)
	Create a special shape that represents the emitter. More...

virtual AABB	getAABB () const =0
	Return an axis-aligned box bounding the spatial extents of the emitter. More...

void	setMedium (Medium *medium)
	Set the medium that surrounds the emitter. More...

void	addChild (ConfigurableObject *child)
	Add an unnamed child. More...

Public Member Functions inherited from mitsuba::ConfigurableObject
virtual void	setParent (ConfigurableObject *parent)
	Notify the ConfigurableObject instance about its parent object. More...

void	addChild (ConfigurableObject *child)
	Add an unnamed child. More...

const std::string &	getID () const
	Return the identifier associated with this instance (or "unnamed") More...

void	setID (const std::string &name)
	Set the identifier associated with this instance. More...

const Properties &	getProperties () const
	Return the properties object that was originally used to create this instance. More...

Public Member Functions inherited from mitsuba::SerializableObject
	SerializableObject (Stream stream, InstanceManager manager)
	Unserialize a serializable object. More...

Public Member Functions inherited from Object
	Object ()
	Construct a new object. More...

int	getRefCount () const
	Return the current reference count. More...

void	incRef () const
	Increase the reference count of the object by one. More...

void	decRef (bool autoDeallocate=true) const
	Decrease the reference count of the object and possibly deallocate it. More...

virtual std::string	toString () const
	Return a human-readable string representation of the object's contents. More...

Static Public Attributes
static Class *	m_theClass

Static Public Attributes inherited from mitsuba::ProjectiveCamera
static Class *	m_theClass

Static Public Attributes inherited from mitsuba::Sensor
static Class *	m_theClass

Static Public Attributes inherited from mitsuba::AbstractEmitter
static Class *	m_theClass

Static Public Attributes inherited from mitsuba::ConfigurableObject
static Class *	m_theClass

Static Public Attributes inherited from mitsuba::SerializableObject
static Class *	m_theClass

Static Public Attributes inherited from Object
static Class *	m_theClass
	Pointer to the object's class descriptor. More...

Protected Member Functions
	PerspectiveCamera (const Properties &props)
	Construct a new perspective camera instance. More...

	PerspectiveCamera (Stream stream, InstanceManager manager)
	Unserialize a perspective camera instance from a binary data stream. More...

virtual	~PerspectiveCamera ()
	Virtual destructor. More...

Protected Member Functions inherited from mitsuba::ProjectiveCamera
	ProjectiveCamera (const Properties &props)
	Construct a new camera instance. More...

	ProjectiveCamera (Stream stream, InstanceManager manager)
	Unserialize a camera instance from a binary data stream. More...

virtual	~ProjectiveCamera ()
	Virtual destructor. More...

Protected Member Functions inherited from mitsuba::Sensor
	Sensor (const Properties &props)
	Construct a new sensor instance. More...

	Sensor (Stream stream, InstanceManager manager)
	Unserialize a sensor instance from a binary data stream. More...

virtual	~Sensor ()
	Virtual destructor. More...

Protected Member Functions inherited from mitsuba::AbstractEmitter
	AbstractEmitter (const Properties &props)
	Construct a new emitter instance. More...

	AbstractEmitter (Stream stream, InstanceManager manager)
	Unserialize a emitter instance from a binary data stream. More...

virtual	~AbstractEmitter ()
	Virtual destructor. More...

Protected Member Functions inherited from mitsuba::ConfigurableObject
virtual	~ConfigurableObject ()
	Virtual destructor. More...

	ConfigurableObject (const Properties &props)
	Construct a configurable object. More...

	ConfigurableObject (Stream stream, InstanceManager manager)
	Unserialize a configurable object. More...

Protected Member Functions inherited from mitsuba::SerializableObject
	SerializableObject ()
	Construct a serializable object. More...

virtual	~SerializableObject ()
	Virtual deconstructor. More...

Protected Member Functions inherited from Object
virtual	~Object ()
	Virtual private deconstructor. (Will only be called by ref) More...

Protected Attributes
Float	m_xfov

Protected Attributes inherited from mitsuba::ProjectiveCamera
Float	m_nearClip

Float	m_farClip

Float	m_focusDistance

Protected Attributes inherited from mitsuba::Sensor
ref< Film >	m_film

ref< Sampler >	m_sampler

Vector2	m_resolution

Vector2	m_invResolution

Float	m_shutterOpen

Float	m_shutterOpenTime

Float	m_aspect

Protected Attributes inherited from mitsuba::AbstractEmitter
ref< const AnimatedTransform >	m_worldTransform

ref< Medium >	m_medium

Shape *	m_shape

uint32_t	m_type

Protected Attributes inherited from mitsuba::ConfigurableObject
Properties	m_properties

Additional Inherited Members
Public Types inherited from mitsuba::Sensor
enum	ESensorFlags { EDeltaTime = 0x010, ENeedsApertureSample = 0x020, EProjectiveCamera = 0x100, EPerspectiveCamera = 0x200, EOrthographicCamera = 0x400, EPositionSampleMapsToPixels = 0x1000, EDirectionSampleMapsToPixels = 0x2000 }
	This list of flags is used to additionally characterize and classify the response functions of different types of sensors. More...

Public Types inherited from mitsuba::AbstractEmitter
enum	EEmitterType { EDeltaDirection = 0x01, EDeltaPosition = 0x02, EOnSurface = 0x04 }
	Flags used to classify the emission profile of different types of emitters. More...

Static Public Member Functions inherited from Object
static void	staticInitialization ()
	Initializes the built-in reference count debugger (if enabled) More...

static void	staticShutdown ()
	Free the memory taken by staticInitialization() More...

Detailed Description

Perspective camera interface.

This class provides an abstract interface to several types of sensors that are commonly used in computer graphics, such as perspective and orthographic camera models.

The interface is meant to be implemented by any kind of sensor, whose world to clip space transformation can be explained using only linear operations on homogeneous coordinates.

A useful feature of ProjectiveCamera sensors is that their view can be rendered using the traditional OpenGL pipeline.

Constructor & Destructor Documentation

mitsuba::PerspectiveCamera::PerspectiveCamera ( const Properties & props )

protected

Construct a new perspective camera instance.

mitsuba::PerspectiveCamera::PerspectiveCamera	(	Stream *	stream,
		InstanceManager *	manager
	)

protected

Unserialize a perspective camera instance from a binary data stream.

virtual mitsuba::PerspectiveCamera::~PerspectiveCamera ( )

protectedvirtual

Virtual destructor.

Member Function Documentation

virtual void mitsuba::PerspectiveCamera::configure ( )

virtual

Configure the object (called once after construction and addition of all child ConfigurableObject instances).

Reimplemented from mitsuba::Sensor.

virtual const Class* mitsuba::PerspectiveCamera::getClass ( ) const

virtual

Retrieve this object's class.

Reimplemented from mitsuba::ProjectiveCamera.

Float mitsuba::PerspectiveCamera::getDiagonalFov ( ) const

Return the diagonal field of view in degrees.

Float mitsuba::PerspectiveCamera::getXFov ( ) const

inline

Return the horizontal field of view in degrees.

Float mitsuba::PerspectiveCamera::getYFov ( ) const

Return the vertical field of view in degrees.

virtual void mitsuba::PerspectiveCamera::serialize	(	Stream *	stream,
		InstanceManager *	manager
	)		const

virtual

Serialize this camera to a binary data stream.

Reimplemented from mitsuba::ProjectiveCamera.

void mitsuba::PerspectiveCamera::setDiagonalFov ( Float dfov )

Set the diagonal field of view in degrees.

void mitsuba::PerspectiveCamera::setXFov ( Float xfov )

Set the horizontal field of view in degrees.

void mitsuba::PerspectiveCamera::setYFov ( Float yfov )

Set the vertical field of view in degrees.

Member Data Documentation

Class* mitsuba::PerspectiveCamera::m_theClass

static

Float mitsuba::PerspectiveCamera::m_xfov

protected

The documentation for this class was generated from the following file:

include/mitsuba/render/sensor.h

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
